产品简介

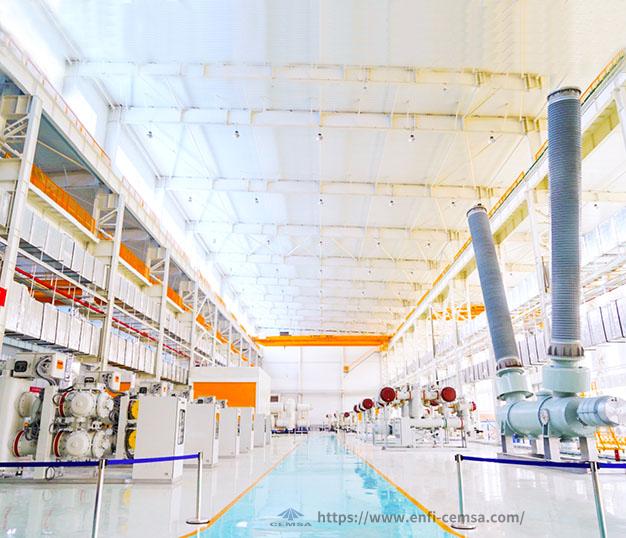

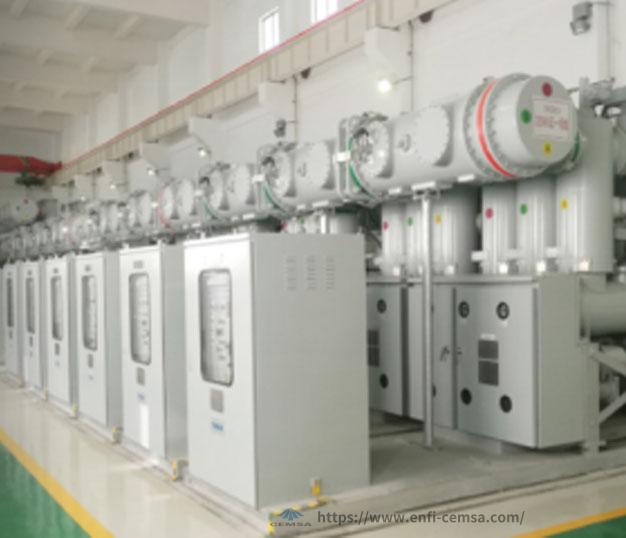

GIS

TBEA is one of the few enterprises in the industry with the research and development capacity of 1000kV UHV switch. The GIS developed by TBEA, such as 126kV, 145kV, 252kV and 550kv GIS, 145kV porcelain column circuit breaker, 550kV and 800kV tank circuit breaker, 40.5kV, 126kV and 252kV disconnectors, fully meet the IEC / GB / DL standards, and their performance has reached the international advanced and domestic leading level of similar products.

规格系列：72.5kV~145kV GIS——720bays
170kV~252kV GIS——480bays
420kV~550kV GIS——48bays

服务电话+86 13521339794

获取价格

在线留言

enfi.cemsa@gmail.com

优势特点

132/220/550kv GIS is modular design. The live part of the product is completely sealed in the metal shell and insulated by SF6 gas, which prevents the invasion of foreign matters outside, and ensures the good insulation performance of the product.
Due to modular design, the design and installation are flexible, which greatly meet the requirements of customers;
The product is small in volume and light in weight;
Compact structure, space saving;
The whole transportation is convenient for installation;
The opening ability is strong and the insulation level is high;
Product safety, reliability, stable operation.

工作原理

SF6 gas is used as the insulating medium, and the main circuit conductor is enclosed in the gas chamber by the grounded metal shell, including the electrical function modules such as circuit breaker, isolation (grounding) switch, current transformer, voltage transformer, main bus line, incoming and outgoing bushing; Each combination is equipped with a local control cabinet, which configures various monitoring and secondary control components in the cabinet. The action of each element in GIS equipment is controlled by the principle of relay protection, realizing the function of interlocking locking, meeting the requirements of system eliminating fault and switching power load.

技术参数

Serial number	Product model	Company	ZF53-126	ZF53-145	IFT-252	ZF53-550
1	Maximum ambient temperature	Temperature	40	40	40	40
2	Ambient minimum temperature	Temperature	-30	-30	-25	-30
3	altitude	M	1000/2000	1000	1000/1900	1000
4	Pollution level		Class III / altitude 2600m Class IV / altitude 1000M	Class III / altitude 1300m	Class III / altitude 1900m Class IV / altitude 1000M	IV
5	Rated voltage	KV	126	145	252	550
6	Rated current	A	2000	3150	3150/4000	4000/5000
7	Rated frequency	Hz	50	50	50	50
8	Rated short-time power frequency withstand voltage (effective value between phase to ground, phase to phase / fracture)	KV	230/230+73	275/315	460/460+145	740/740+318
9	Rated lightning impulse withstand voltage (peak value between phase to phase / fracture)	KV	550/550+103	650/750	1050/1050+206	1675/1675+450
10	Rated operating impulse withstand voltage (phase to ground, phase to phase / peak between fractures)		Not applicable	Not applicable	Not applicable	1300/1175+450
11	Rated short-time withstand current (effective value)	KA	40	40	50	63
12	Rated short circuit duration	S	4	4	3	3
13	Rated withstand current (peak)	KA	100	100	125	171
14	Annual leakage rate of SF6 gas (no more than)	%/Y	0.005	0.005	0.005	0.005
15	Air chamber of circuit breaker	MPa	0.58	0.58	0.6	0.58
15	Other gas chambers	MPa	0.45	0.58	0.6	0.48
16	Rated operating sequence		O–0.3s–CO–180s–CO	O–0.3s–CO–180s–CO	O–0.3s–CO–180s–CO	O–0.3s–CO–180s–CO
17	Operation mode of circuit breaker		Spring	Spring	Spring or hydraulic	hydraulic pressure
18	Operation mode of disconnector / grounding switch		Electric operation, manual	Electric operation, manual	Electric operation, manual	Electric operation, manual
19	Operation mode of fast grounding switch		Electric spring operation, manual	Electric spring operation, manual	Electric spring operation, manual	Electric spring operation, manual

应用业绩

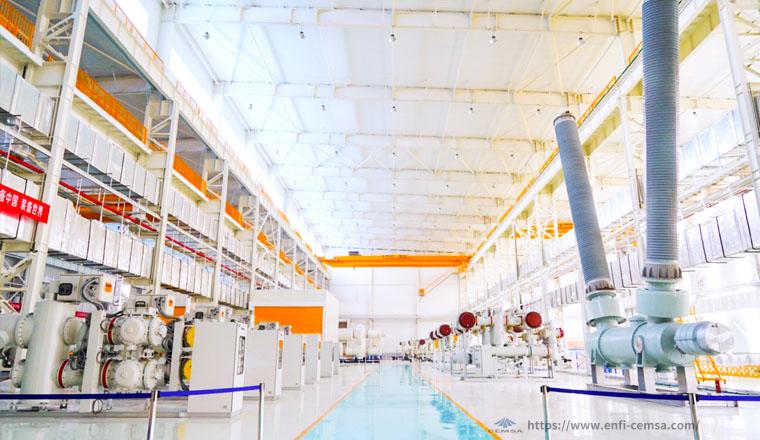

420kv GIS developed is used in darbangga power station in India

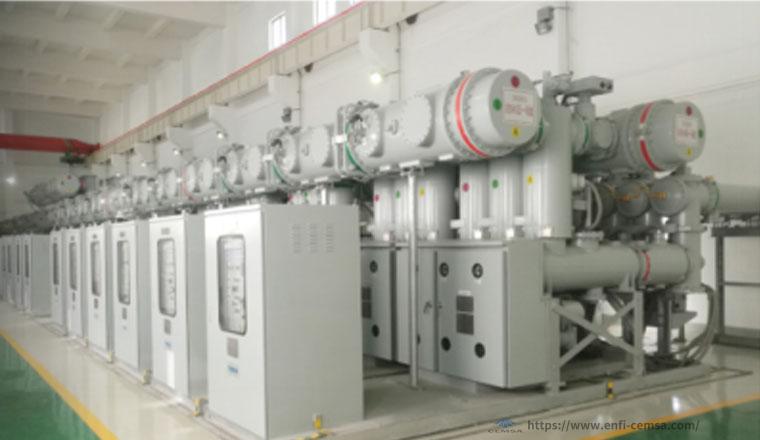

252 (245) kV GIS products meet the requirements of GB and DL standards at the same time, reaching the advanced level of similar products in the world
